VOICE ALARM EN54

LT 7208EN

LINE TRANSFORMER INTERFACE
  • 8 built -in line transformes
  • Link/group MU 7100EN amplifiers
  • Speakers line monitoring
  • Supports different line voltage setting
EN 54
Where to buy
Features Specifications Downloads Accessories Related products
Where to buy
Features
  • 8 built -in line transformes
  • Link/group MU 7100EN amplifiers
  • Speakers line monitoring
  • Supports different line voltage setting

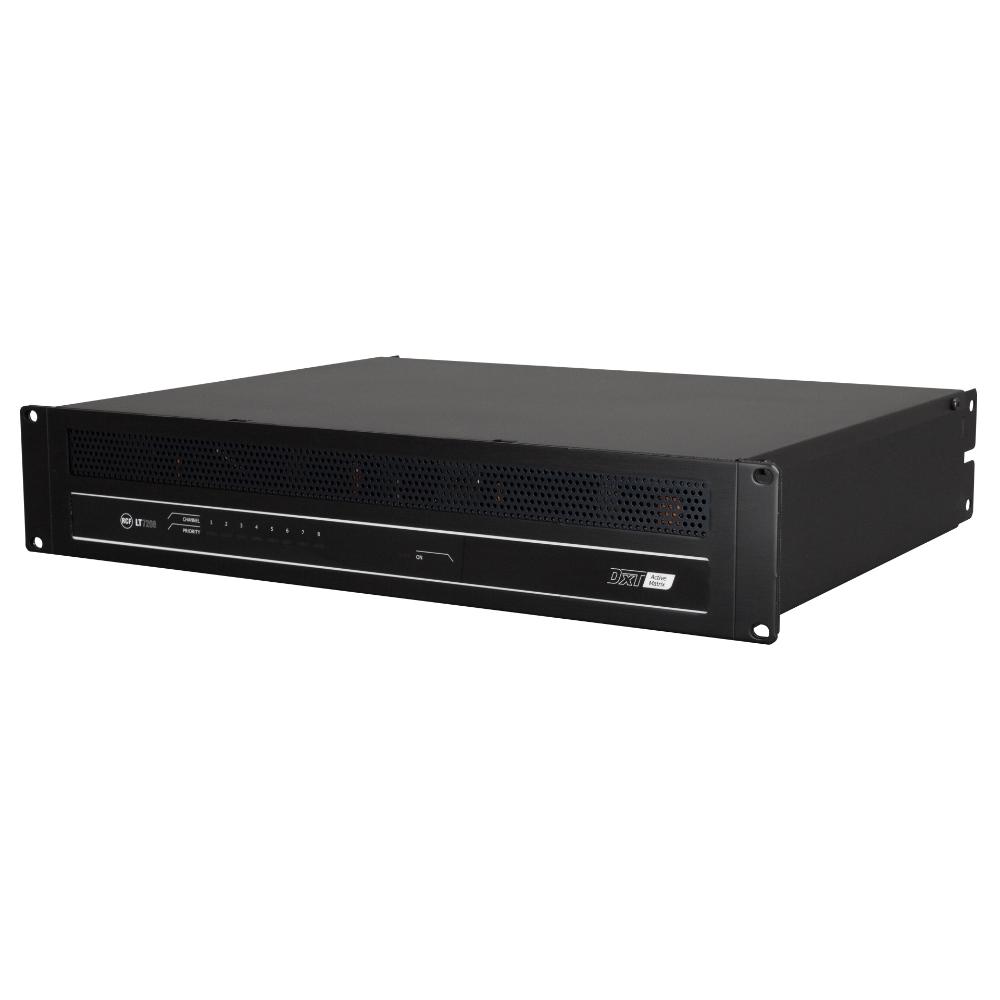

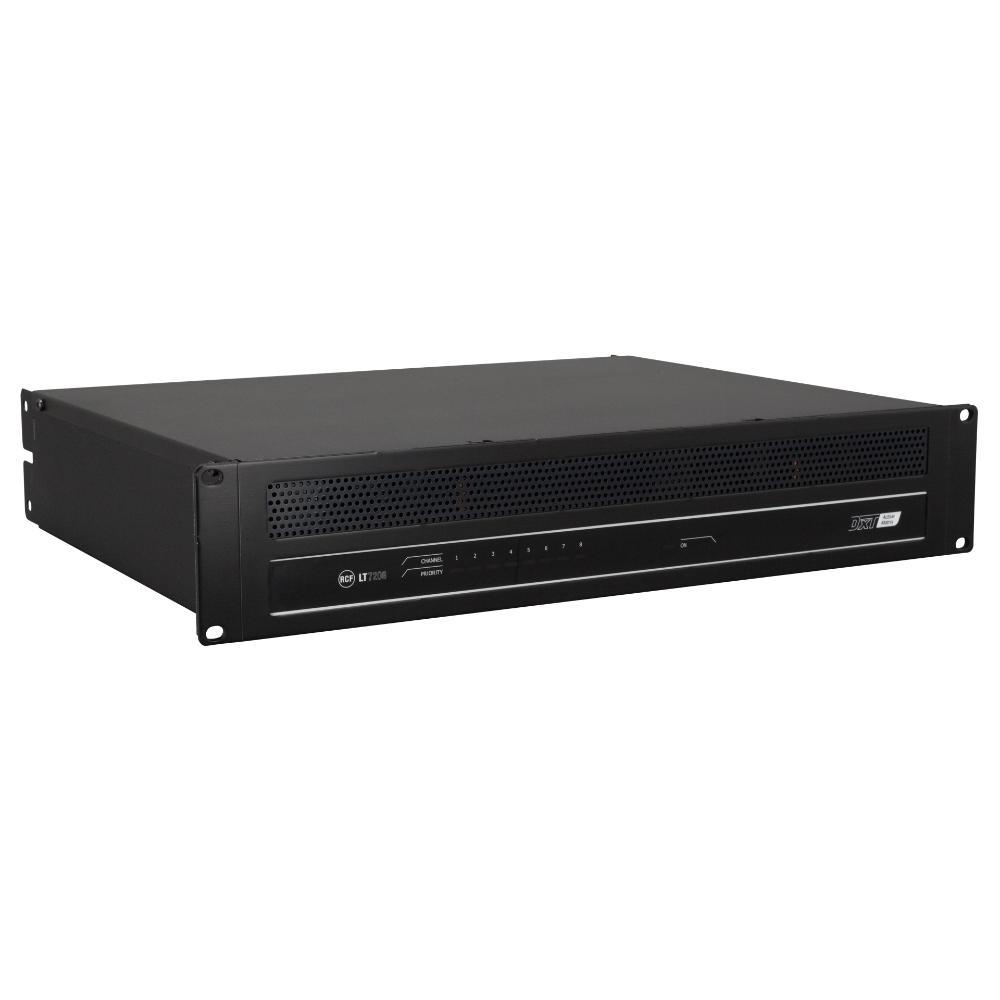

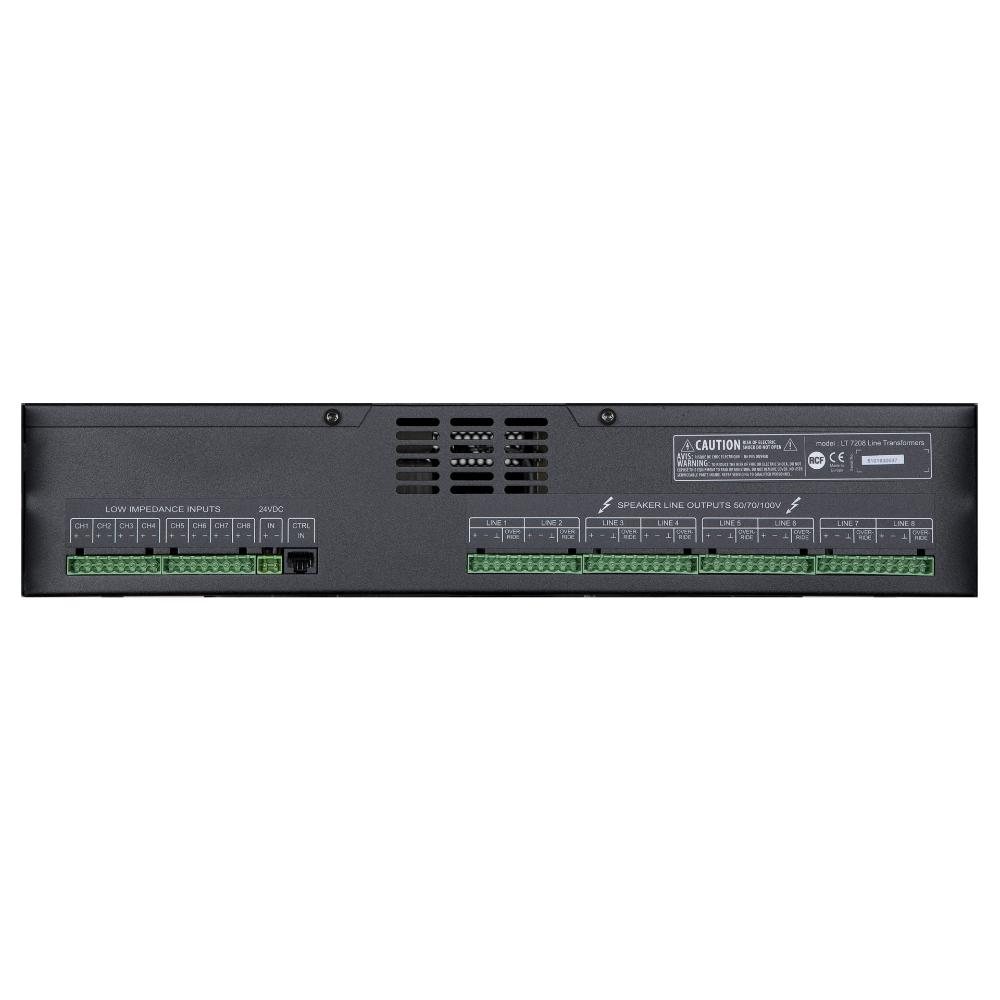

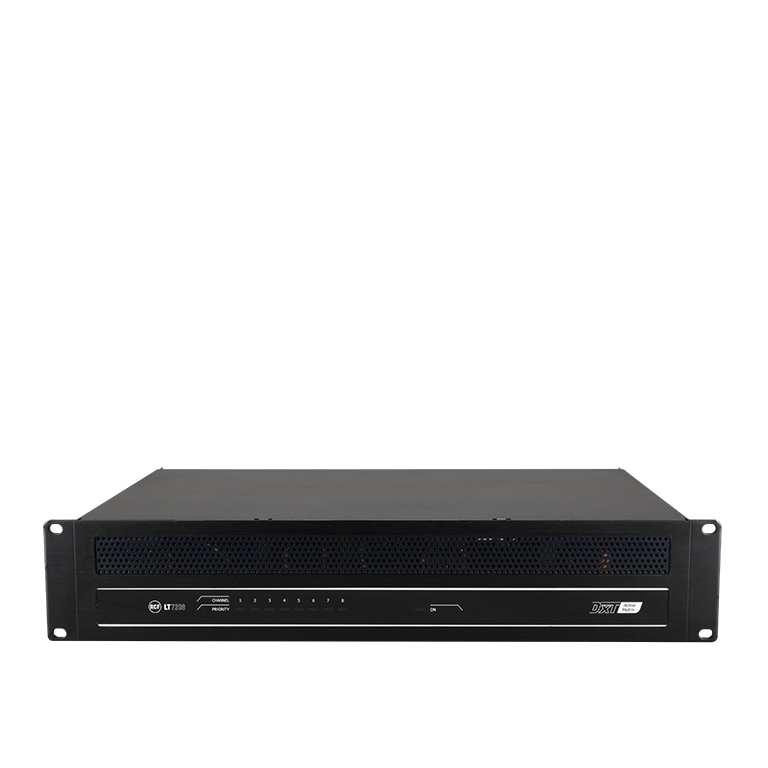

The LT 7208EN unit has 8 internal transformers (80 W / each) to convert the 8 Ohm loudspeakers outputs of MU 7100EN master unit into constant voltage lines (100 - 70 - 50 V) for loudspeakers equipped with line transformers. It allows to implement several power configurations, such as 8 x 80 W, 4 x 160 W and 2 x 320 W.

Part number:

17170156
LT 7208EN
EAN 8024530007126

Specifications
General specifications
Number of inputs:
8
Input impedance:
8 O
Output voltage:
100 V (on request: 70 V – 50 V)
Power output (@ 100 V)
640 W RMS
Communication bus:
Serial
Units connections:
FTP CAT 5, FTP CAT 6
Power output connectors:
Euroblock
Standard compliance
Safety agency
Yes
EN54-16 certified
Yes
CPR number
1438-CPR-0241
Physical specifications
Cabinet/Case Material
Metal
Rack mounting
19", 2U
Size / Weight
Height
88 mm / 3.46 inches
Width
485 mm / 19.09 inches
Depth
382 mm / 15.04 inches
Weight
13 kg / 28.66 lbs
Shipping information
Package Weight
14 kg / 30.86 lbs
