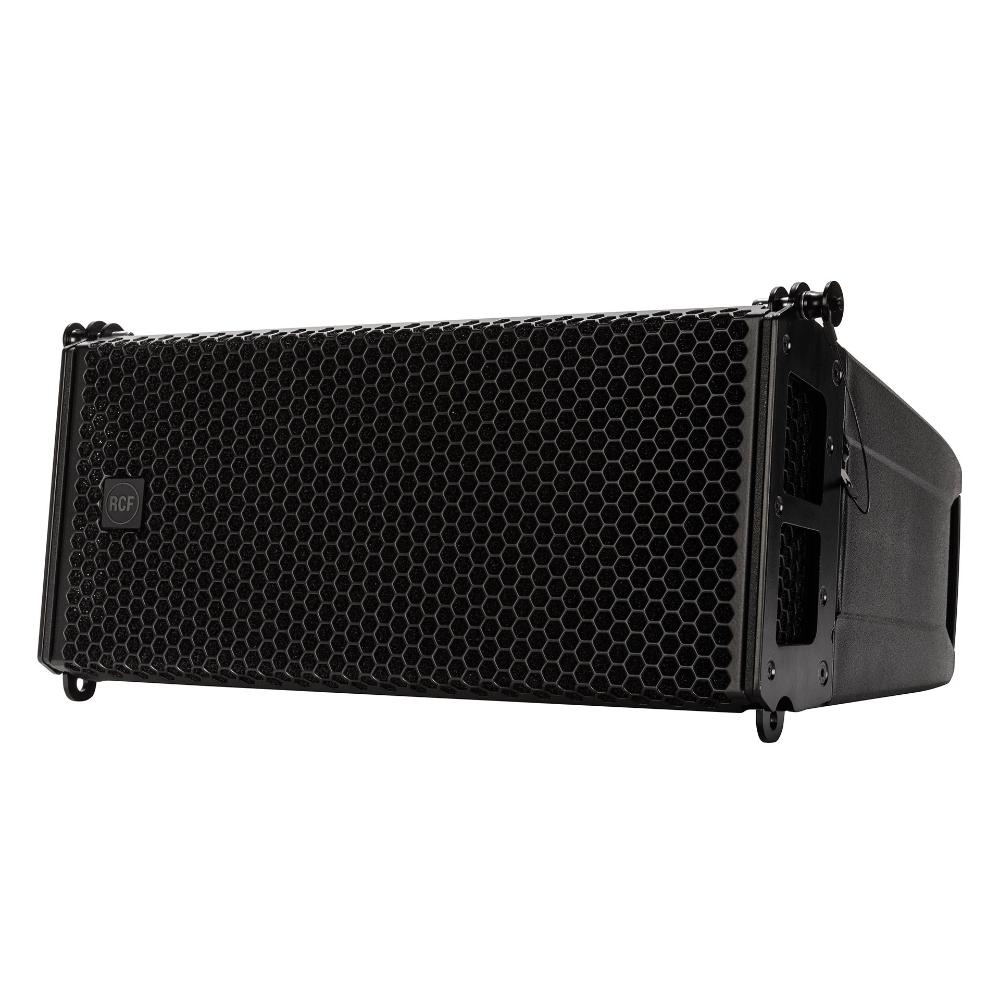

HL 6

LINE ARRAY MODULE

250 W RMS power handling
131 dB max SPL
65 ÷ 20000 Hz frequency range
100° x 10° coverage angles

Where to buy

Features

250 W RMS power handling
131 dB max SPL
65 ÷ 20000 Hz frequency range
100° x 10° coverage angles
Fully equipped with neodymium transducers
Horn Loaded symmetric design
Wooden reinforced polypropylene enclosure
Steel grille with clothing
2 x SPEAKON connectors

HL 6 is two-way full range system, ideal when line array performance is needed, and a fast and easy set-up is a must. The concept of this speaker derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound. HL 6 features state-of-the art RCF transducers, two powerful 6.0” woofers for a solid bass reproduction, plus a high powered 1.75” voice coil compression driver mounted on a precise 100° x 10° waveguide to deliver vocal clarity with high definition and incredible dynamic. Due to its symmetrical design the HL 6 produces constant coverage without break up or attenuation, maintaining intelligibility, definition, and signal strength over distance. HL 6 comes in a structurally wooden reinforced composite polypropylene enclosure, and it is equipped with two rear handles for portability.

NEW

Part number:

13000726
HL 6
EAN 8024530019068

Legendary subwoofers

The RCF HL 6 features RCF transducers with neodymium magnets. RCF’s experienced engineering teams have specially developed and matched each component. An entire set of protections preserve product life and reliability.

High frequencies

High-performance RCF ND840
1.75-inch diaphragm neodymium compression driver
900 Hz crossover point

Low frequencies

Two 6” neodymium woofers
Low frequencies handling down to 65 Hz
Water resistant fiber doped cone
Polycotton M-roll surround
Hypervented magnetic structure

Constant directivity waveguide

The custom-designed waveguide allows a precise coverage of 100° x 10°, while also delivering a completely linear high-frequency response. The constant directivity waveguide delivers consistent coverage from 900 Hz to the highest audible frequencies.

Perfect for installation

The passive architecture makes the HL 6 one of the lightest line array modules on the market. Combined with flexible rigging options and a wide range of accessories, it's the ideal line array for installation both in corporate environments or music venues. HL 6 provides plenty of sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.

Advanced design

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at 1° angle.
The hardware is designed for easy and fast setup. Up to 16 HL 6 modules can be fastened on a single flybar.
The heavy-duty front grille is powder-coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.

The hl 6’s perfect low-frequency companion

Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array, the low-frequency companion designed for the HL 6 is the high-performance flyable single 15” HL 35-S. The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6 lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. HL 35-S provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
