TA1000 VSA

100V TRANSFORMER FOR VSA ACTIVE SPEAKERS
  • Compact installation within speaker's input panel
Wo zu kaufen
Merkmale Spezifikationen Downloads Kompatible Produkte
Wo zu kaufen
Merkmale
  • Compact installation within speaker's input panel

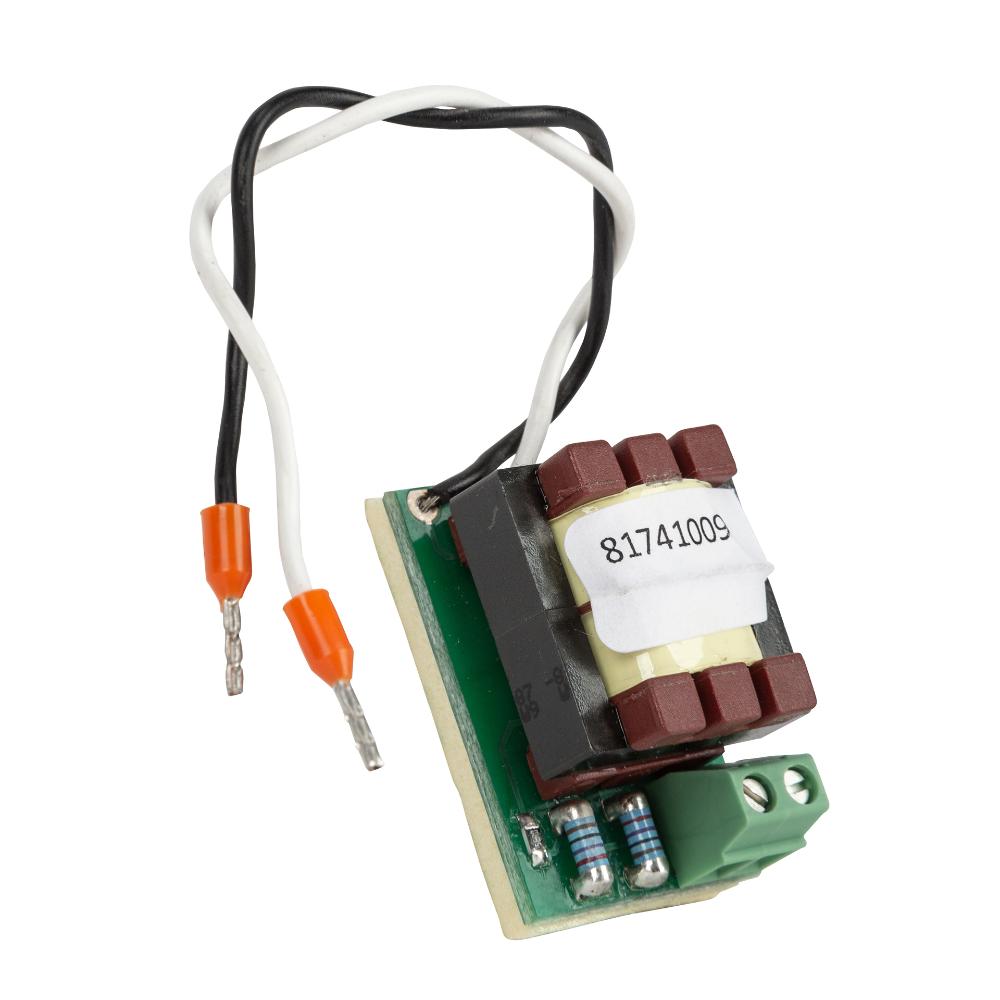

TA 1000 is an accessory that consists of a small printed circuit board with a transformer that allows the connection of a 100 V line (amplifier output) directly to the aux audio input (0 dBu) of an active speaker.

Part number:

13360318
TA1000 VSA
EAN 8024530012878

Spezifikationen
Allgemeine spezifikationen
Input voltage:
100 V - 70 V
Output voltage:
0.1 ÷ 1 V
Frequency response:
40 Hz ÷ 16000 Hz (± 1 dB)
Distortion:
= 0.3%
Input connection:
Screw terminals
Output:
0 dBu with settled black-white cable (10 cm) with section 2 x 0.25 mm²
Mounting:
Double-coated, open-cell urethane foam tape, thickness 3.2 mm
Compatilbe models:
VSA 850, VSA 1250, VSA 2050
Standardkonformität
Safety agency
Yes
Größe / Gewicht
Gewicht
0.05 kg / 0.11 lbs
Versandinformationen
Verpackung Höhe
75 mm / 2.95 inches
Verpackung Breite
140 mm / 5.51 inches
Verpackung Tiefe
70 mm / 2.76 inches
Verpackungsgewicht
0.8 kg / 1.76 lbs
Kompatible Produkte
Downloads
HANDBÜCHER
USER MANUAL
PDF
218 KB
12-02-2016
DATENBLÄTTER
SPECSHEET - ENG
PDF
290 KB
02-11-2021
