INSTALLED

P 2110T

WEATHERPROOF COAXIAL TWO-WAY SPEAKER
  • 124 dB SPL Max, 200W RMS
WEATHERPROOF
Wo zu kaufen
Merkmale Spezifikationen Downloads Zubehör Verwandte Produkte videos
Wo zu kaufen
Merkmale
  • 124 dB SPL Max, 200W RMS
  • Weatherproof IP55 cabinet with UV protection
  • Line transformer
  • 90° x 40° CMD constant directivity horn
  • 10" high-output LF transducer with 2.5" voice coil
  • RCF Precision 1" C. Driver with 1.5" voice coil
  • 12 brass suspension points (M10)
  • Roto-moulded single piece cabinet

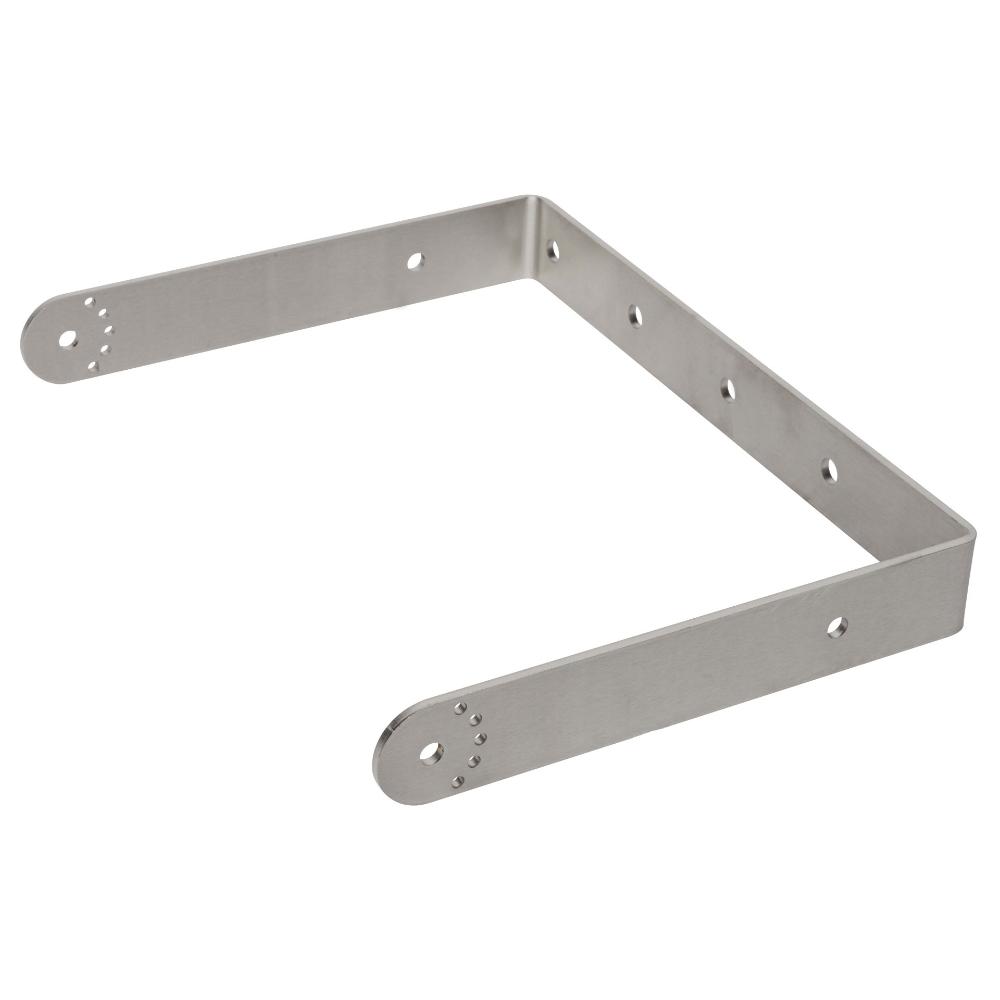

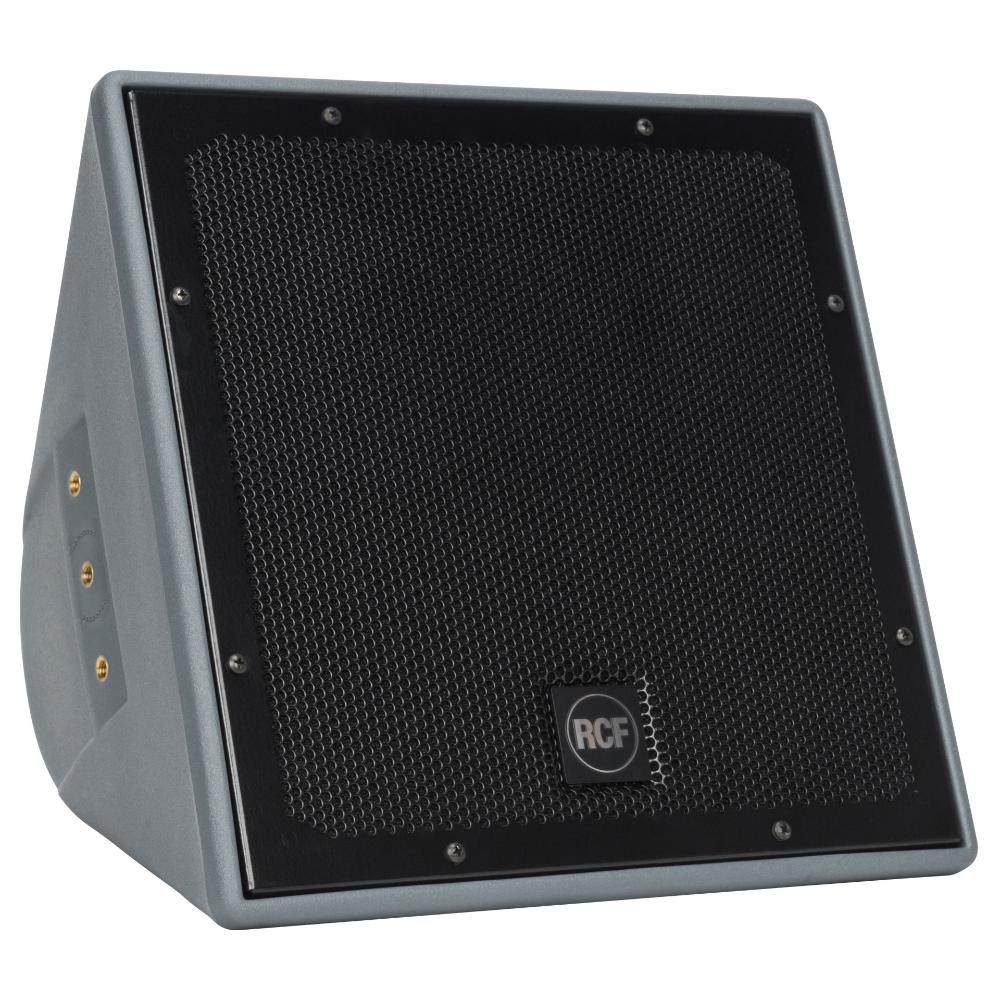

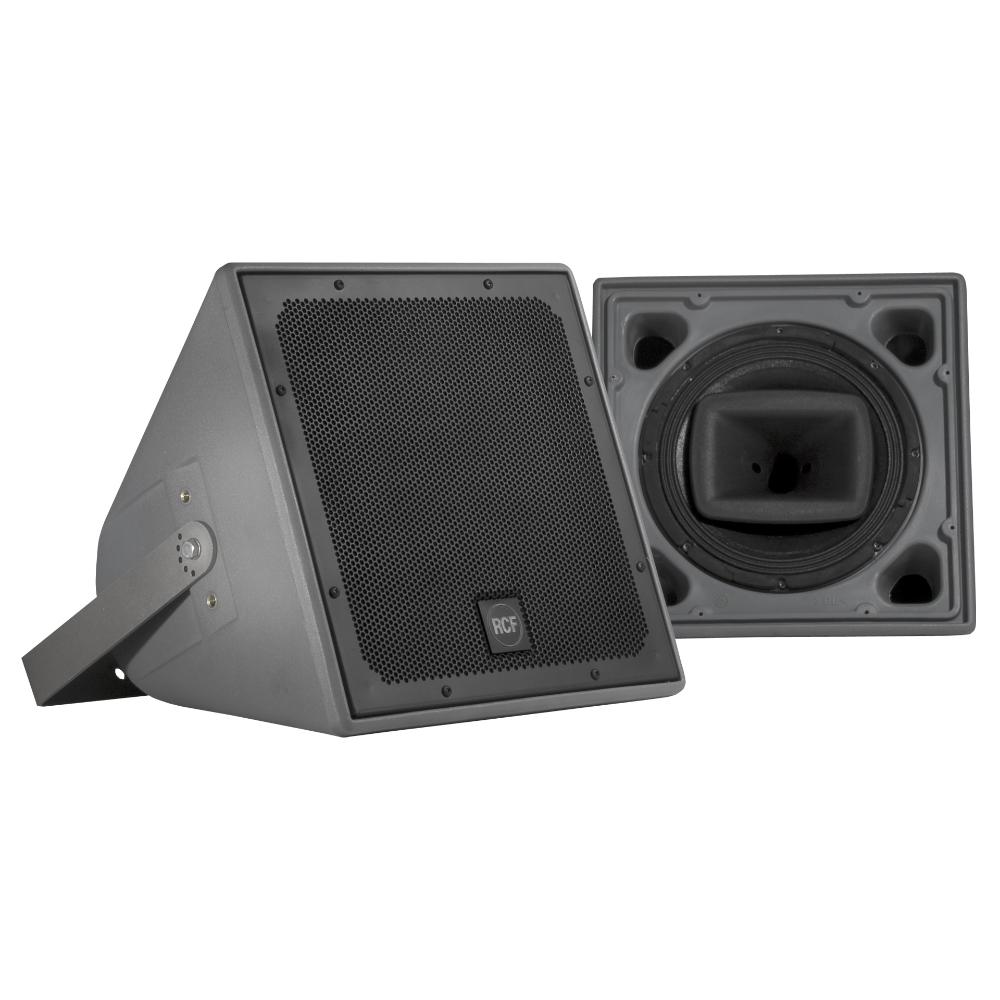

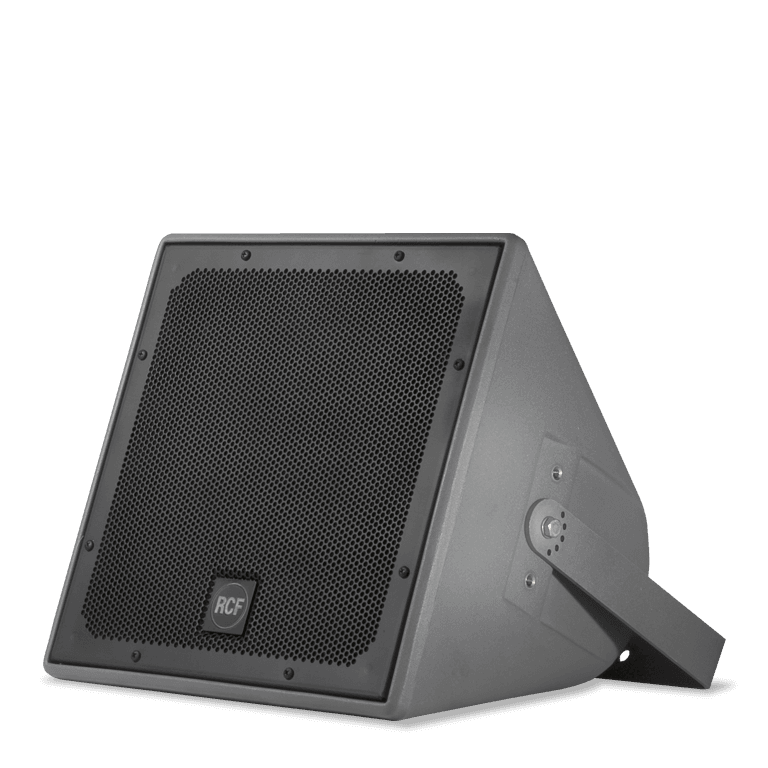

The P 2110T is a weatherproof full-range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 10” woofer with a 2.5” voice coil. The high-frequency section combines a 1” RCF Precision compression driver with a 1.5” diaphragm assembly centrally-mounted in the throat of the LF driver, and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P 2110T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements. Included are M10 brass inserts (12 x) and one durable corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and a rotatable logo plate.

WEITERLESEN

Part number:

13000125
P 2110T
EAN 8024530008246



All-weather performance

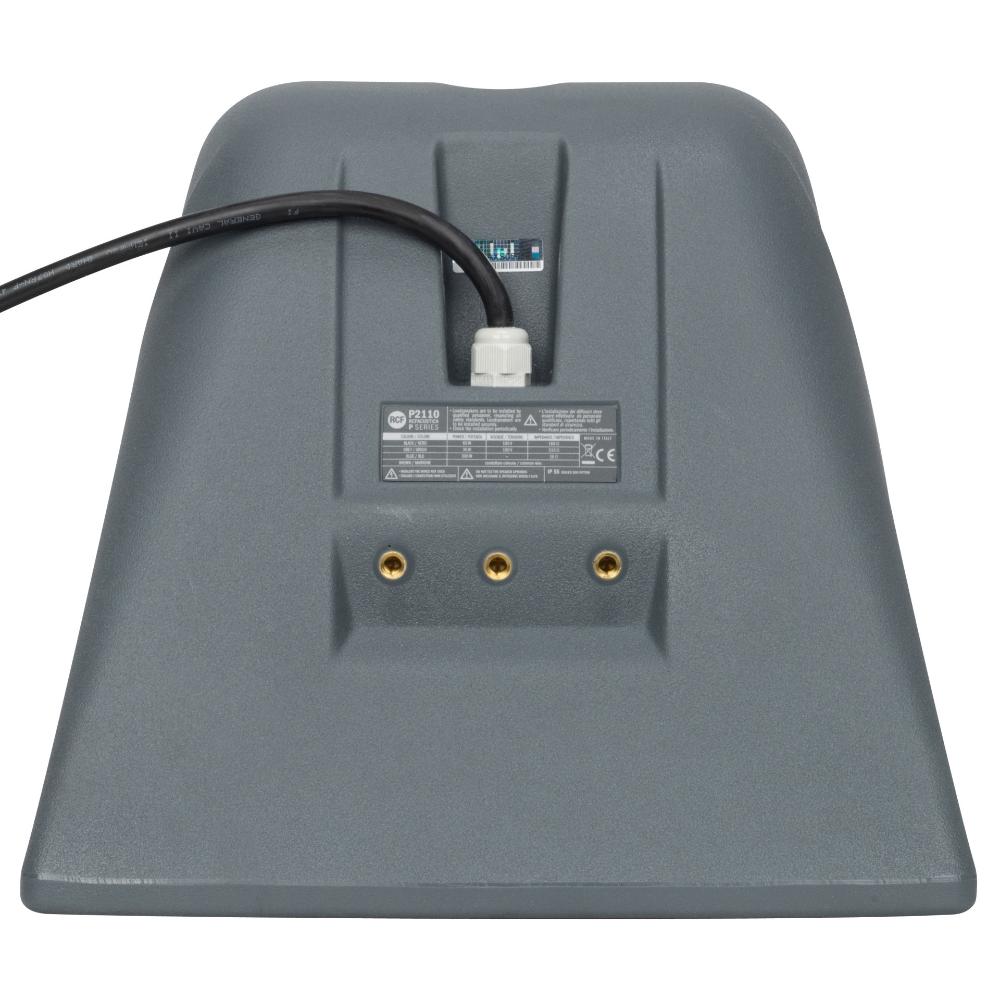

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.

Versatility for any application

Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.

Responsive Image

LICC - Low Impedance Compensated Crossover

The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.

CMD - Coverage Matching Design

RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity. The horn can be rotated, allowing to install the loudspeaker either vertically or horizontally.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Spezifikationen
Spezifikation
Frequenzgang (-10dB)
95 Hz ÷ 20000 Hz
Max SPL @ 1m:
124 dB
Horizontaler Abstrahlwinkel:
90°
Vertikaler Abstrahlwinkel:
40°
Richtcharakteristik Index Q
11
System-Empfindlichkeit
95 dB
Power sektion
Nominalimpedanz
16 ohm
Leistungsaufnahme
200 W
Paek Power
800 W PEAK
Schutzschaltungen
Dynamic active mosfet
Übergangsfrequenz
2000 Hz
Enpfohlener Verstärker
400 W
Schallwandler
Kompressionstreiber:
1.0'', 1.5'' v.c
Woofer
Coaxial 10'', 2.5'' v.c
Input/Output sektion
Eingangsbuchsen
Neoprene Cable
Transformator mit Konstantspannung
100 V
Auswahl der Leistung 1
60 W - 167 ohm
Auswahl der Leistung 2
30 W - 333 ohm
Auswahl der Leistung 3
15 W - 667 ohm
Standardkonformität
IP Schutzgrad
IP 55
Safety agency
Yes
Physikalische daten
Gehäuse Material
PE Low Density
Hardware
12 x M8 inserts + U-brackets and pair of spacers
Gitter
Aluminum with waterproof clothing
Farbe
Grey
Größe / Gewicht
Höhe
350 mm / 13.78 inches
Breite
350 mm / 13.78 inches
Tiefe
320 mm / 12.6 inches
Gewicht
13.4 kg / 29.54 lbs
Versandinformationen
Verpackung Höhe
400 mm / 15.75 inches
Verpackung Breite
370 mm / 14.57 inches
Verpackung Tiefe
370 mm / 14.57 inches
Verpackungsgewicht
16.3 kg / 35.94 lbs
